Electrical Products

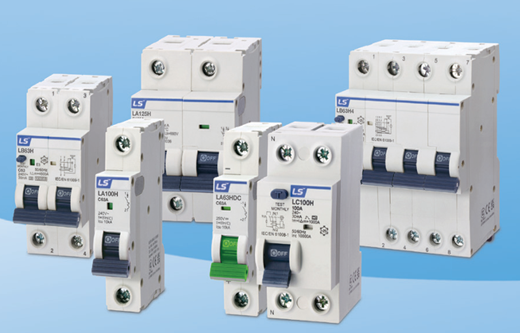

Miniature Circuit Breaker (MCB)

Technical Specifications

  • Series L Series
  • Standard IEC 60898-1, IEC 60947-2
  • Poles 1P, 1P+N, 2P, 3P, 3P+N, 4P
  • Mechanical Durability 20,000 cycles
  • Electrical Durability 10,000 cycles
  • Frame Size (AF) Up to 125AF
  • Rated Voltage (Ue) 240/415V AC, 70/125V DC
  • Trip Curve B, C, D Curve
  • Rated Current (In) Up to 125A
  • Breaking Capacity (Icu) 6kA ~ 10kA

Product Gallery

Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 2 Miniature Circuit Breaker View 3

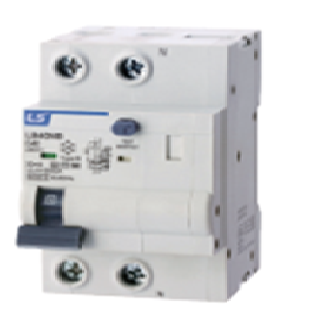

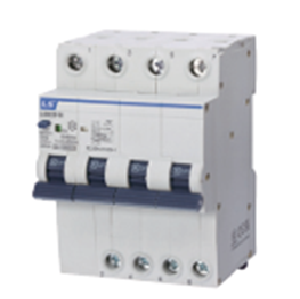

RCBO(Residual Current Breaker with Overcurrent protection)

Technical Specifications

  • Series L Series
  • Standard IEC/EN 61009-1
  • Poles 1P+N, 3P+N
  • Frame Size (AF) Up to 100AF
  • Rated Voltage (Ue) 230/240V AC
  • Type AC
  • Rated Current (In) 6A to 63A
  • Breaking Capacity (Icu) 6~10ka

Product Gallery

Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 2

Residual Current Circuit Breaker

Technical Specifications

  • Series L Series
  • Standard IEC/EN 61008-1
  • Poles 1P+N,3P+N,N
  • Frame Size (AF) Up to 100AF
  • Rated Voltage (Ue) 230/240V AC
  • Type AC
  • Rated Current (In) 16A to 80A
  • Sensibility(mA) 30mA,100mA,300mA,

Product Gallery

Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 2

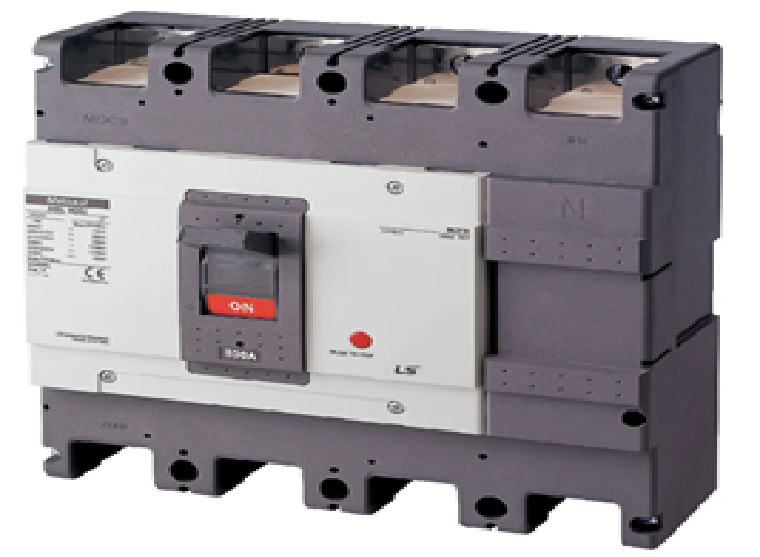

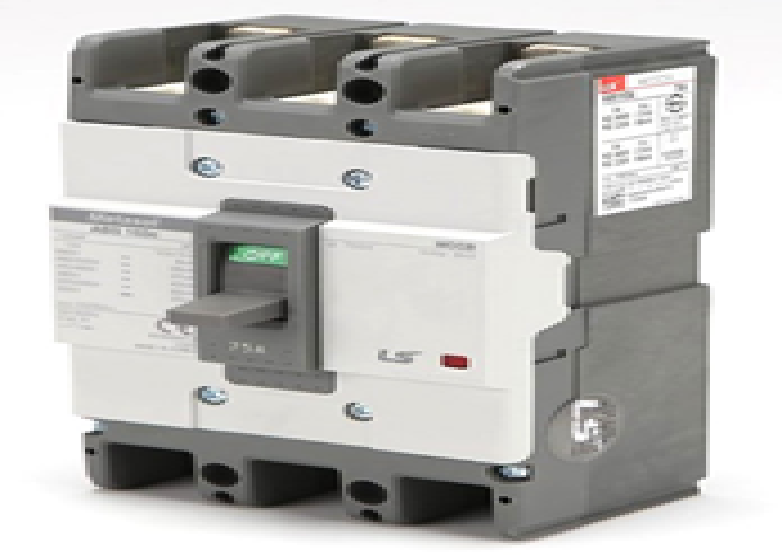

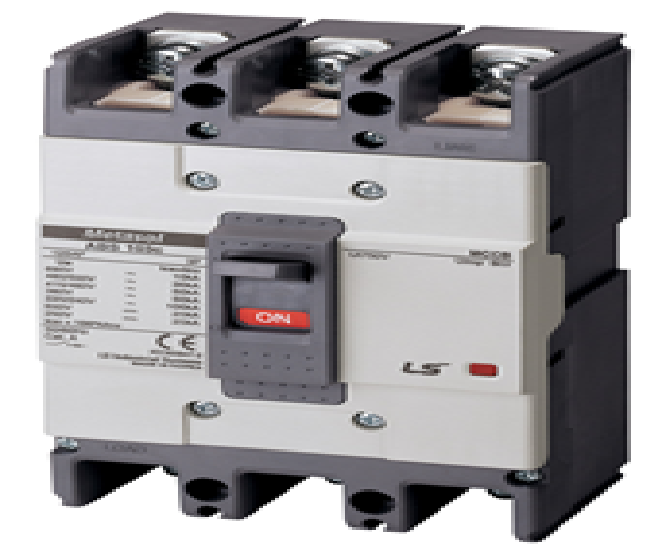

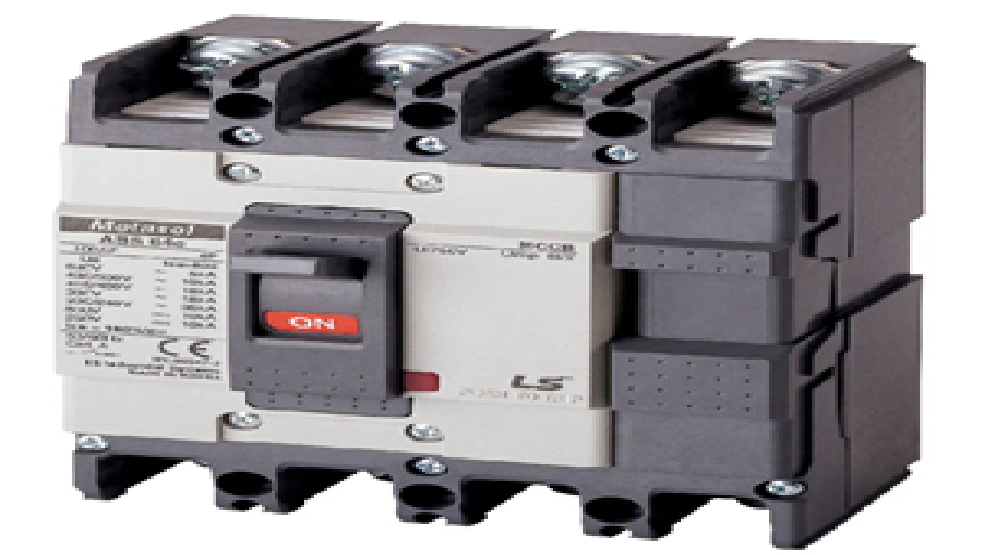

Molded Case Circuit Breaker

Technical Specifications

  • Series Metasol Series
  • Standard IEC 60947-2, GB/T14048.2
  • Poles 2P ,3P ,4
  • Frame Size (AF) 30AF, 50AF, 60AF, 100AF, 125AF, 250AF, 400AF, 600AF, 800AF, 1000AF, 1200AFF
  • Type S type , N Type , H Type and L Type
  • Rated Current (In) 10A to 1200A
  • Breaking Capacity (Icu) 10 ~ 85kA

Product Gallery

Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1

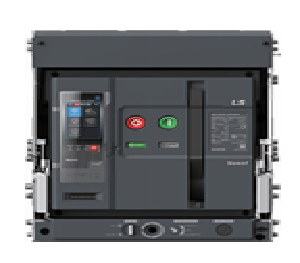

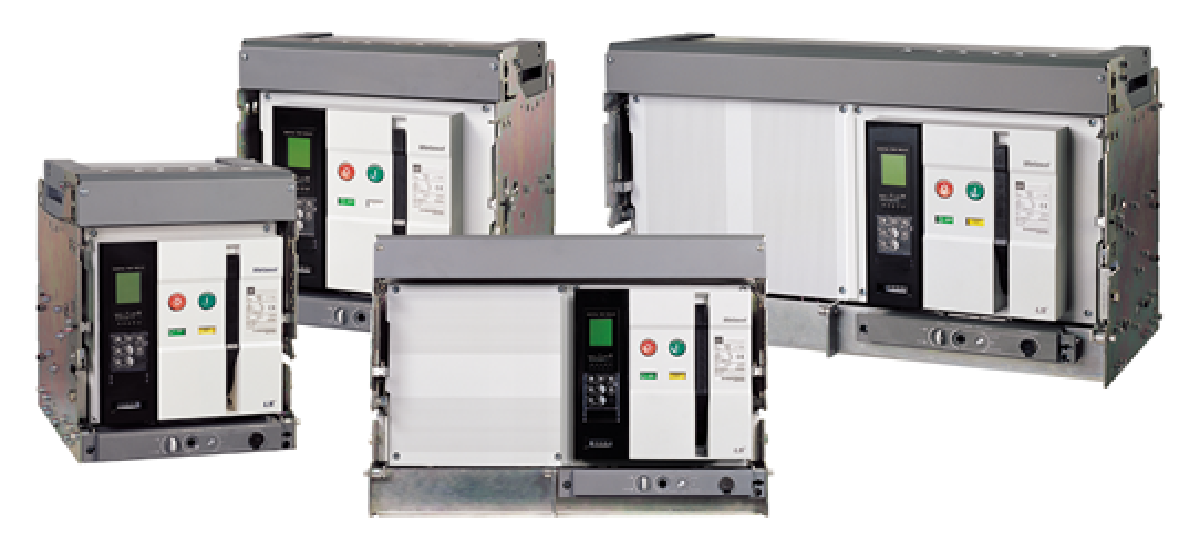

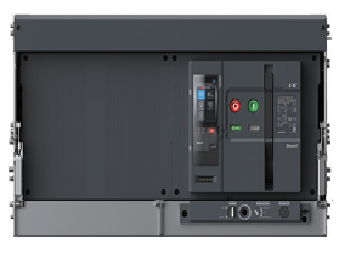

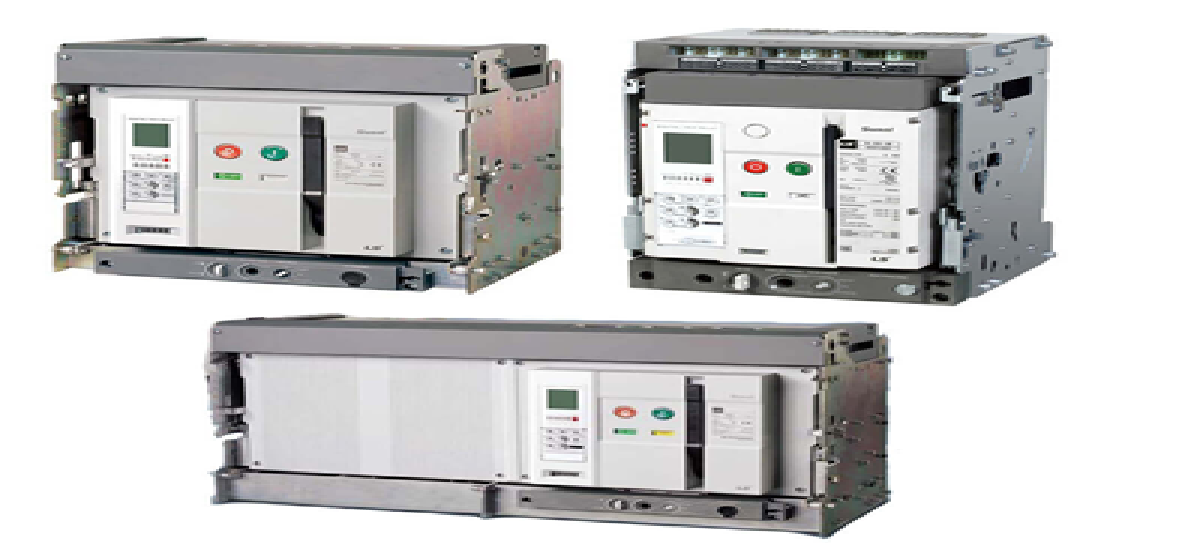

Air Circuit Breaker

Technical Specifications

  • Series Metasol Series
  • Poles 3P ,4P
  • Frame Size (AF) 1250AF ,1600AF ,2500AF,3200AF, 4000AF, 5000AF,6300AF
  • Type Fixed Type , Draw out Type
  • Rated Current (In) 630A to 6300A
  • Breaking Capacity (Icu) 65 ~ 100kA

Product Gallery

Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1

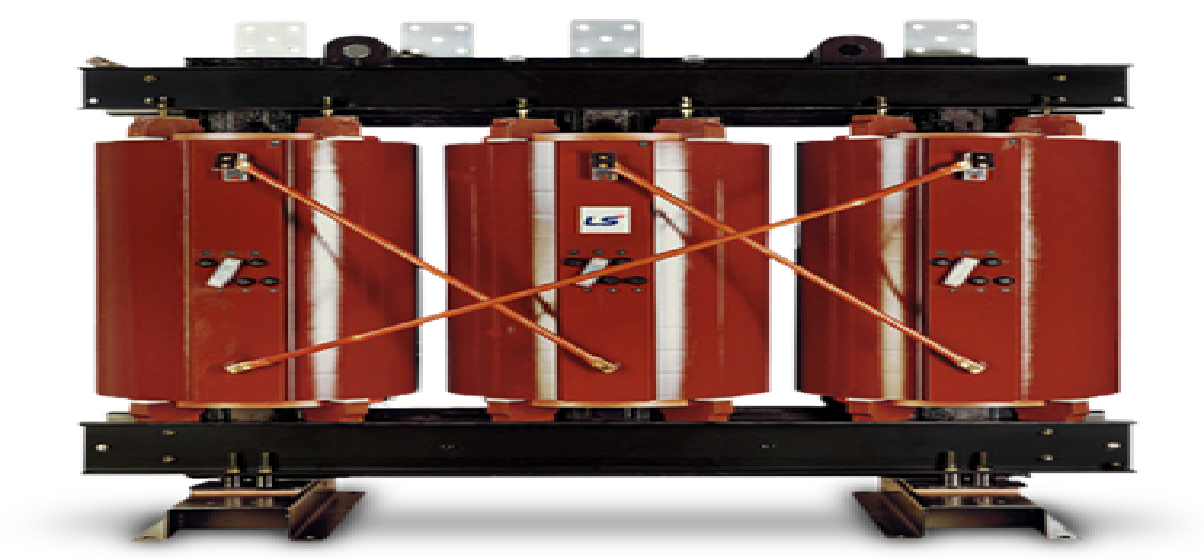

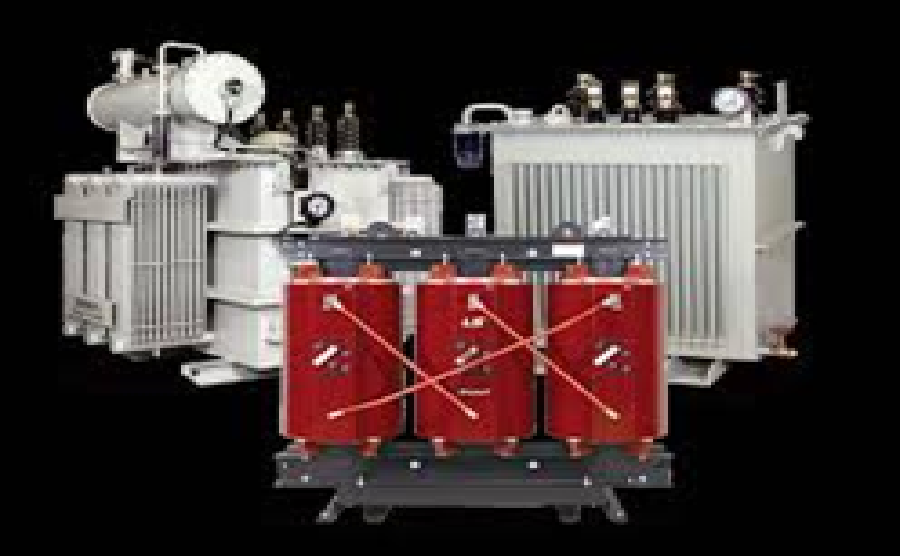

CRT Transformer

Technical Specifications

  • Rated Voltage 6~33kV
  • Enclosure IP2X,IP 3X,IP 4XP
  • Rated Capacity Up to 3150 kVA
  • Standard IEC 60076-11, KSC 4311,7 IEEC 57.12.01
  • Insullation Class F type (155°𝐶) 𝑠𝑡𝑑 ,H type (180°𝐶) on request

Product Gallery

Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1

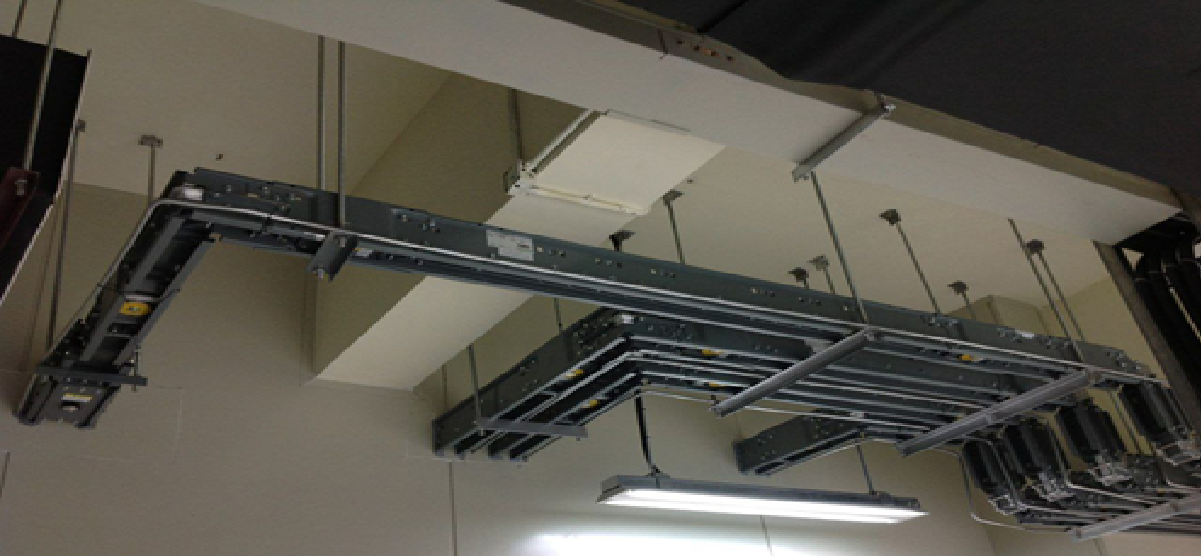

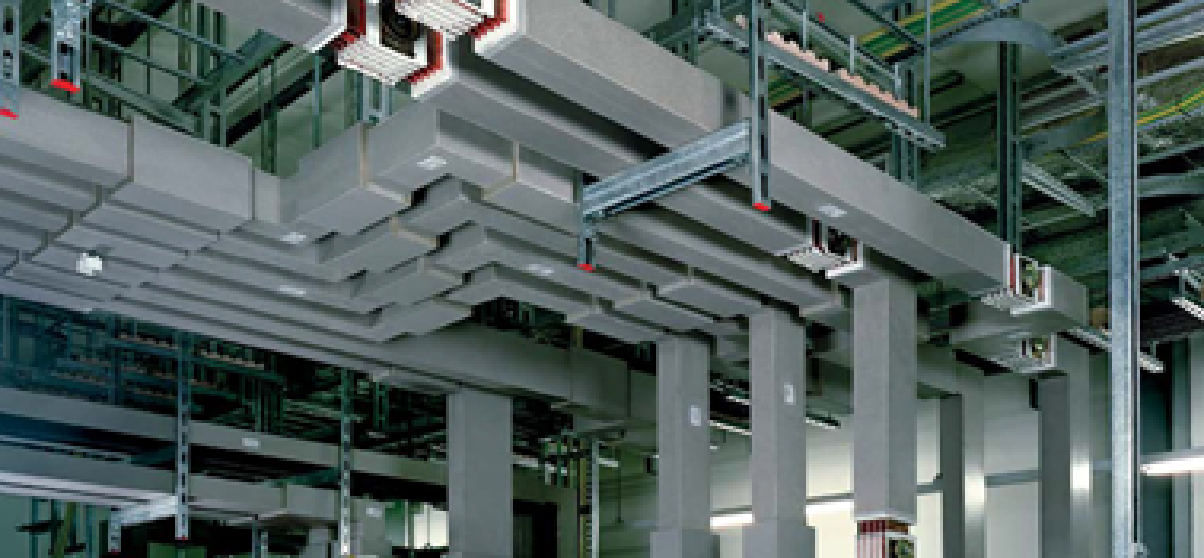

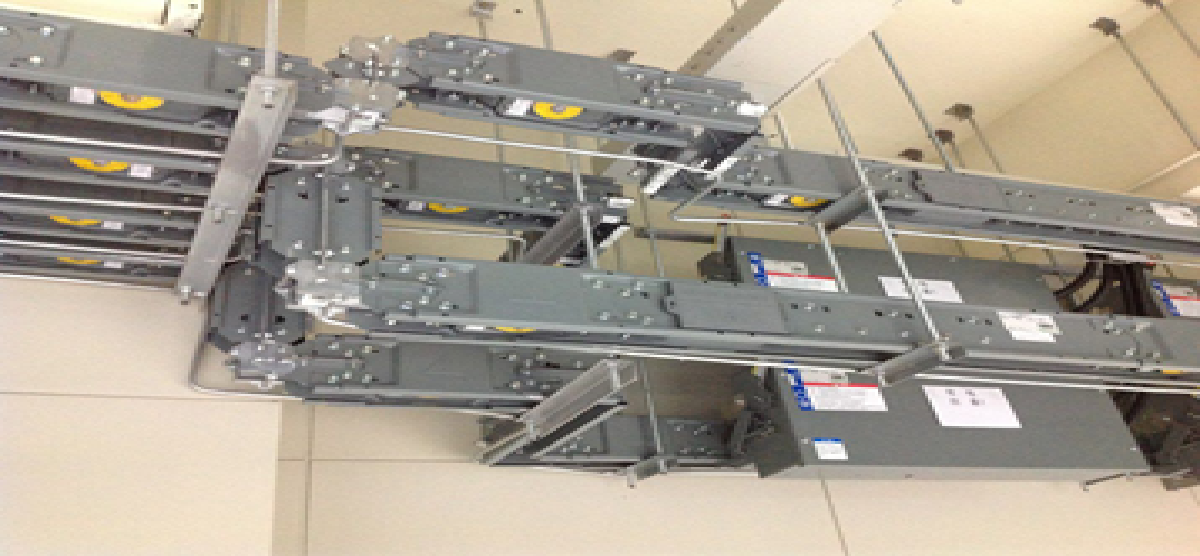

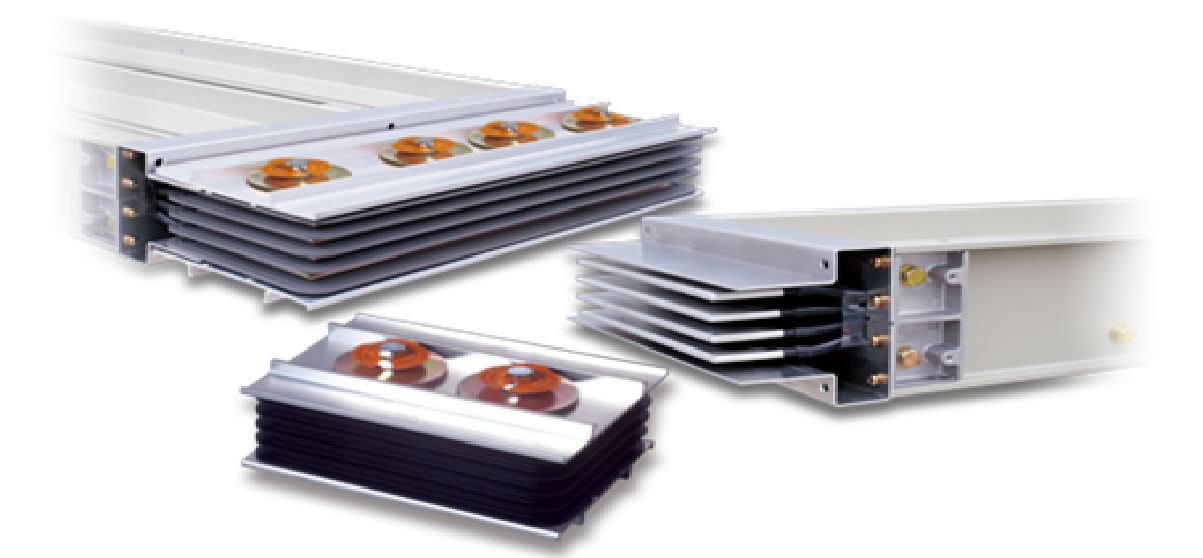

Busduct

Technical Specifications

  • Series I Series
  • Insulation Type Sandwich Type Iz-way by PET(Mylar)Class B/F optional If-way by Mica(1200°C) Ix-way by Epoxy (Class H)
  • IP Rating IP 54 as std and 55,65 as optional
  • Aluminum Current 630A ~6000A
  • Copper Current 630 ~7500A

Product Gallery

Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1

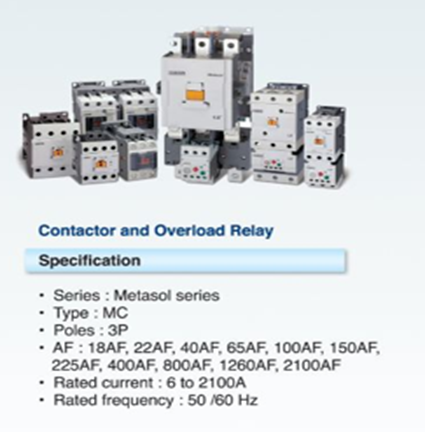

Other

Product Gallery

Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1 Miniature Circuit Breaker View 1
